Energy strategic analysis
Facility: Energy strategic analysis
Instruments
The CO2 Circle Lab equipment consists of:
Energy Center Lab
Emulator of electric storage systems and 15 kW photovoltaic generators
21 kVA linear power amplifier
Opal RT OP5700 real-time simulator
Environment Park
20 kVA switching power amplifier (portable)
Opal RT OP5600 real-time simulator (transportable)
Communication server (transportable)

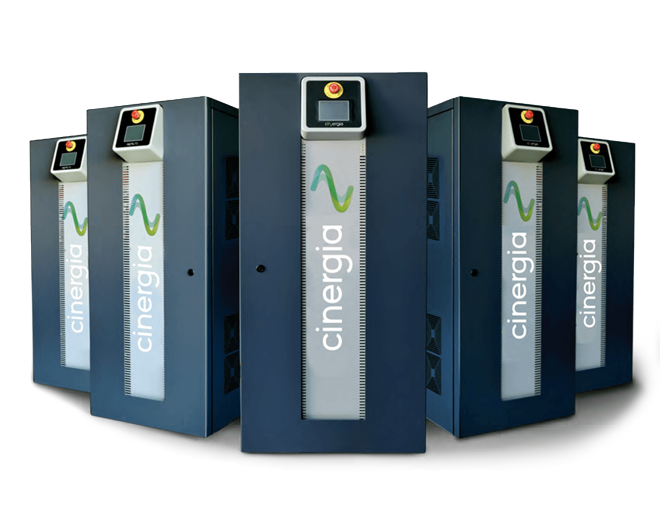

Cinergia Storage and PV emulator – 15kW
Main Technical Features
DC Power (rated)
15 kW
DC Voltage (range)
10-750/800 V
DC Current (channel Unipolar Mode)
+/- 20 A
DC Current (global Parallel Unipolar Mode)
+/- 75 A
DC Current (global Bipolar 4Q Mode)
+/- 25 A
Purpose
Emulation of electrochemical storage systems
and Photovoltaic systems up to 15 kW
Spherea - Linear Power Amplifier
Cinergia - Switching Power Amplifier-Grid Emulator
Spherea - Linear Power Amplifier
PCU 3X7000 VA AC/DC
Main Technical Features
Number of phases
3 phases + earth without neutral
Frequency
47-63 Hz
Operating Temperature
+ 0 °C to +50 °C
Storage Temperature
- 10 °C to +85 °C
Insulation
> 10 MΩ
Max Current per phase
45 Arms
Purpose
Power Hardware-in-the-Loop applications requiring high fidelity waveforms, up to 21 kVA

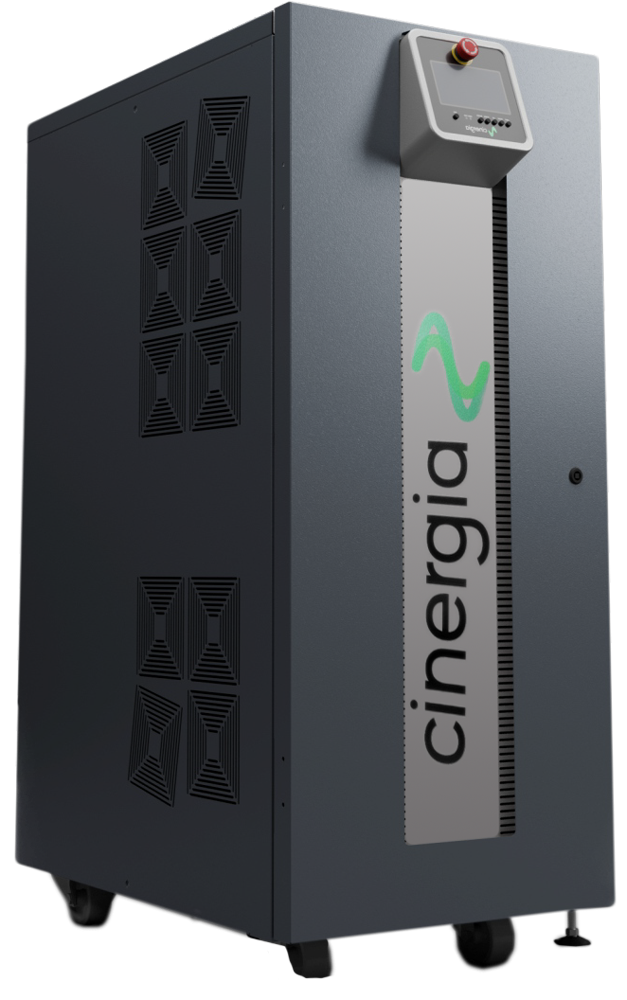

Cinergia - Switching Power Amplifier-Grid Emulator
GE+20
Main Technical Features
Version
vAC
AC Power (rated)
20 kW
DC Power (rated)
-
AC Current (rated RMS per phase/Global)
29A / 87A
DC Current (rated DC Per phase/Global)
-
Purpose
power Hardware-in-the-Loop applications not requiring high fidelity waveforms, up to 20 kVA

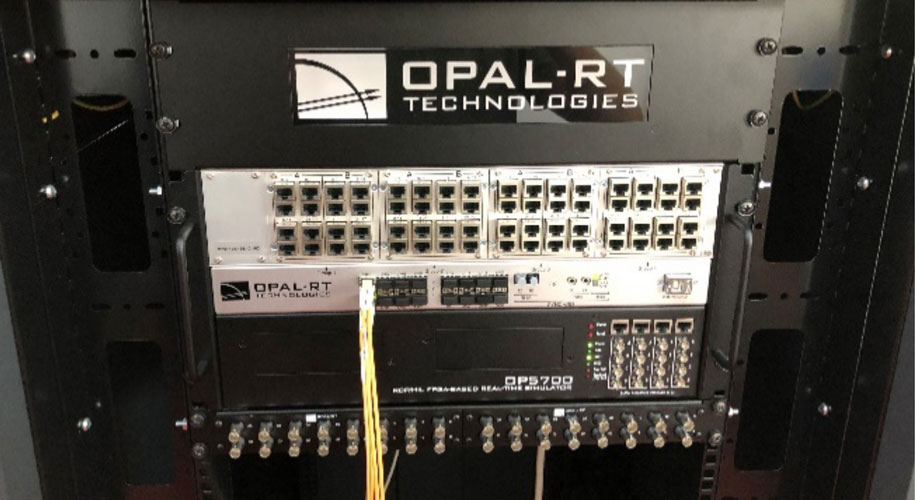

OP5707 - RCP/HIL FPGA-Based RT Simulator
Main Technical Features
CPU Intel 64 bit with 1 core of 16 activated; FPGA Xilinx Virtex-7
Communication with the PC via Gigabit Ethernet
Digital Output board: 32 channels galvanically insulated (16 statics & 16 PWM)
Digital Input board: 2 channels optically insulated (16 statics and 16 PWM)
Analogic Input board: 32 channels; 16-bit 400 kS/s
Analogic Output board: 32 channels; 1MS/s max 15 mA
Purpose
Multi-purpose real-time simulator for Hardware-in-the-Loop applications

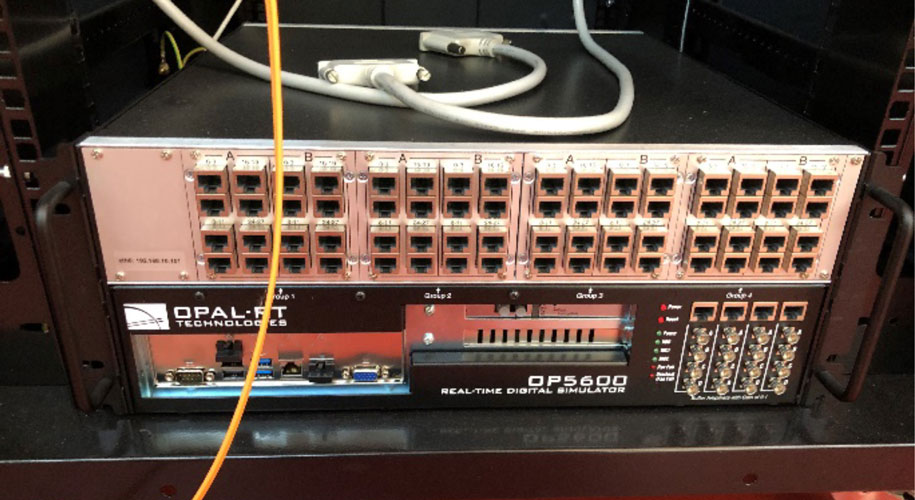

OP560 - Real-Time Digital Simulator
Main Technical Features
CPU Intel 64 bit; 1 core on 8 activated; FPGA Xilinx Spartan-3
Communication with the PC via Gigabit Ethernet
Digital Output board: 32 channels galvanically insulated
Digital Input board 32 channels optically insulated
Analogic Input board: 16 channels, 16-bit 400 kS/s
Analogic Output board: 16 channels, 1MS/s max 15 mA
Purpose
Multi-purpose real-time simulator for Hardware-in-the-Loop applications
