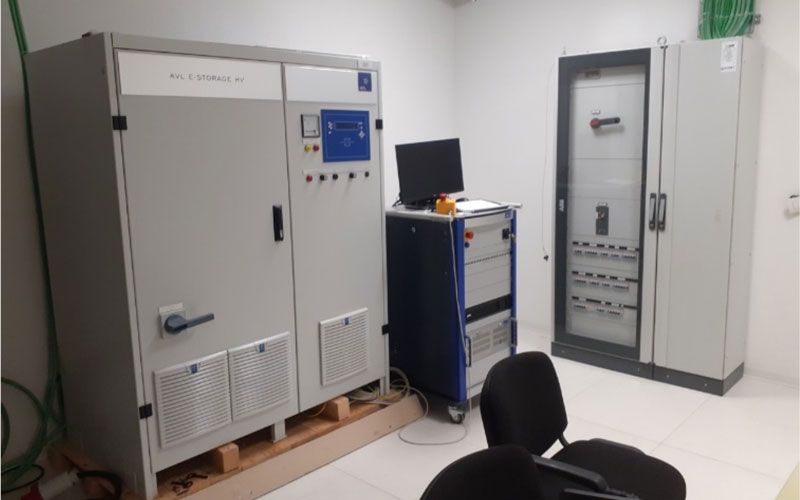

• Figure 1 – Battery pack testing system
    Figure 1 – Battery pack testing system

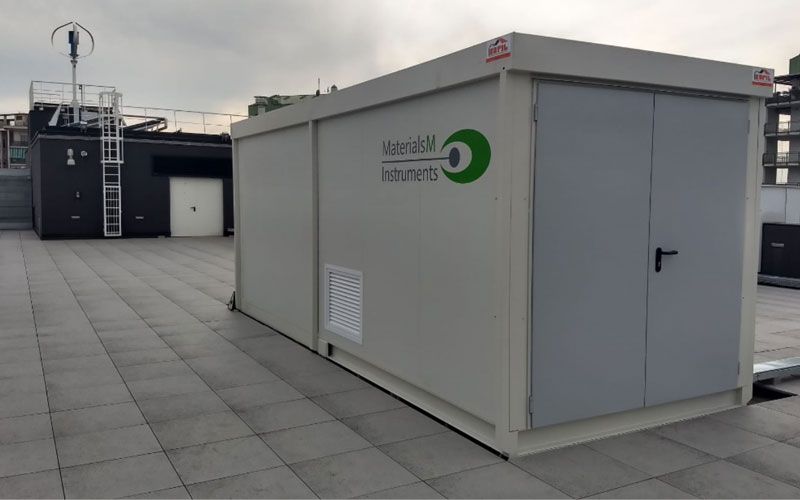

  • Figure 2 – Battery pack safe testing facility
    Figure 2 – Battery pack safe testing facility
  • Figure 1 – Battery pack testing system
  • Figure 2 – Battery pack safe testing facility

AVL E-STORAGE HV 75KW

  • For performance test, cyclability and aging tests
  • 1 channel, max 260 A / 600 V
  • Testing at constant ambient temperature

Accelerating Rate Calorimeter for single cells and middle-sized modules

  • Overcharge/Overdischarge Test
  • Short Circuit Test
  • Thermal stability test (thermal runaway)
  • Nail test
  • Crush test

The equipment allows the realization of these tests at different States of Charge, constantly monitoring the cell/module temperature and pressure. Moreover, the equipment is explosion-proofed and allows sampling to up to 3 gas samples.

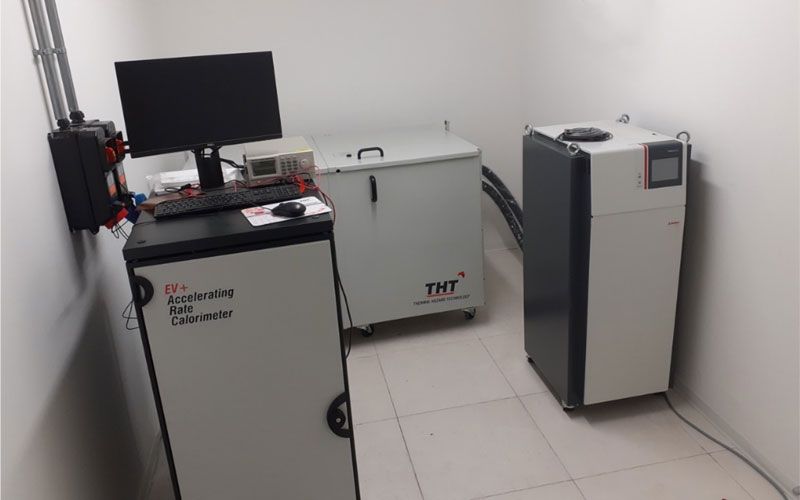

  • Set-up: Calorimeter ARC testing and basic of test
    Set-up: Calorimeter ARC testing and basic of test

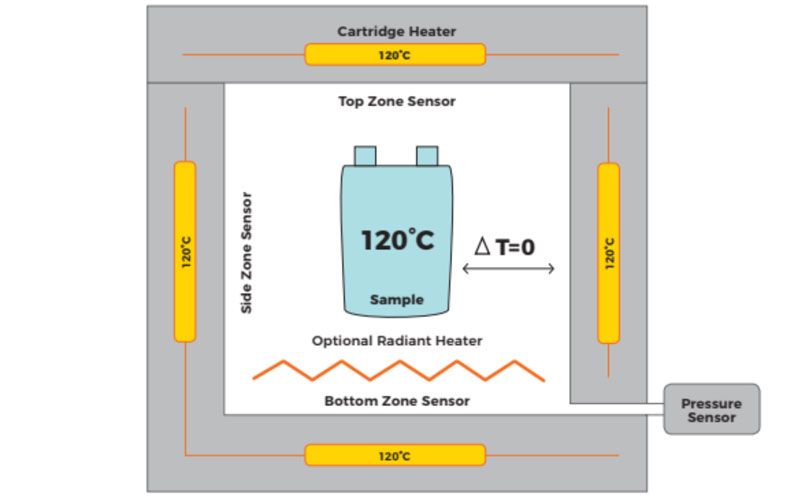

  • Figure 1 - Calorimeter ARC testing and basic of test
    Figure 1 - Calorimeter ARC testing and basic of test

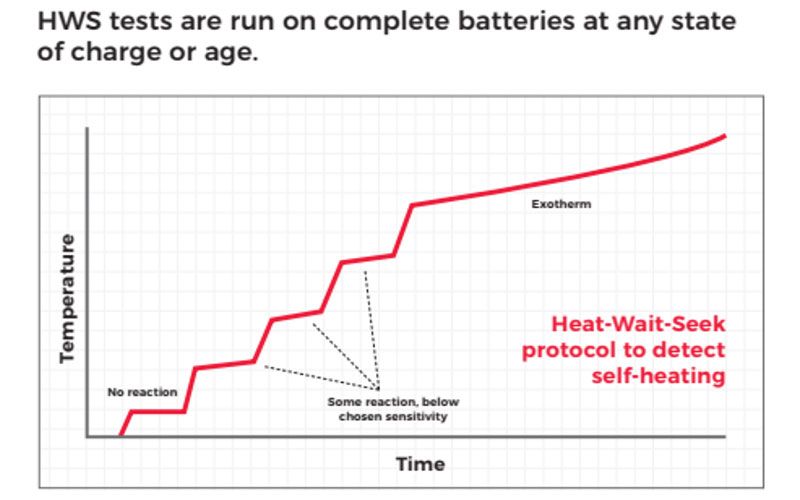

  • Figure 2 - Calorimeter ARC testing and basic of test
    Figure 2 - Calorimeter ARC testing and basic of test
  • Set-up: Calorimeter ARC testing and basic of test
  • Figure 1 - Calorimeter ARC testing and basic of test
  • Figure 2 - Calorimeter ARC testing and basic of test

LIB Cycler

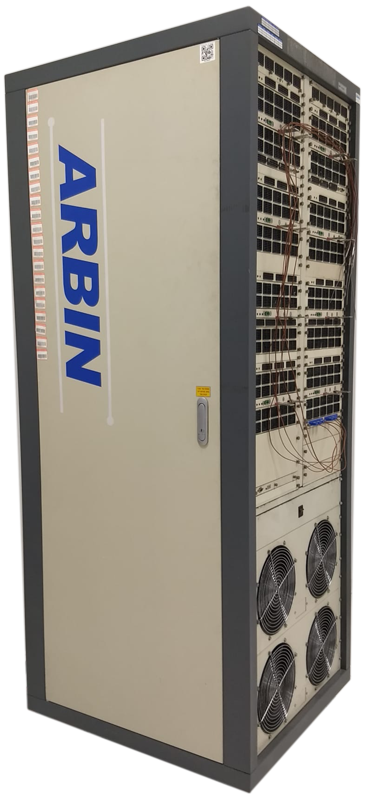

ARBIN LBT22023
  • For performance test, cyclability and aging tests
  • 6 channels, max 5V / 16A
ARBIN LBT21084
  • For performance test, cyclability and aging tests
  • 8 channels, max 5V / 5A

Climatic chamber

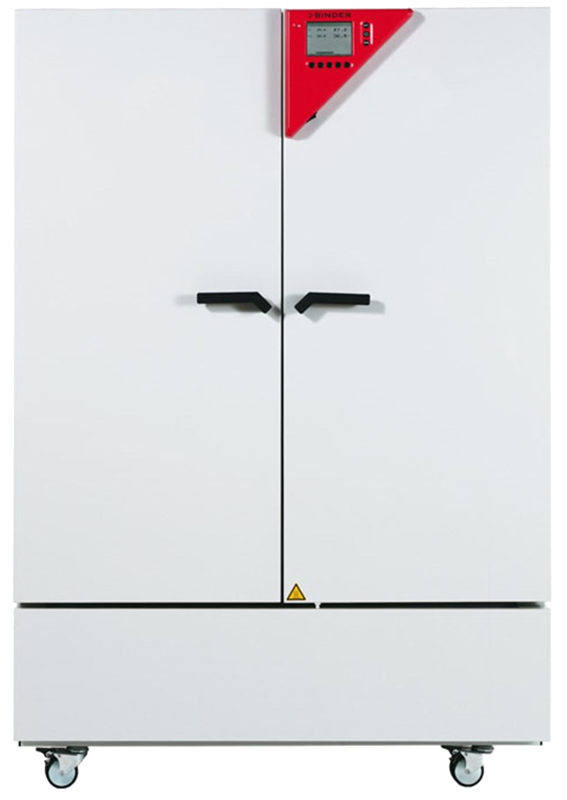

Binder 720 L

  • For cycling tests coupled with Cycler (small size, middle size)
  • Testing from -40 °C +80 °C

Electrical and electrochemical characterization

Instrumentation

  • Potentiostat / galvanostat Metrohm Autolab PGSTAT128 + PC
  • Arbin Instrument Testing System model BT-2000 + PC
  • Potentiostat / galvanostat Biologic VMP3 + PC
  • IPCE: Lamp 100-W QTH (Newport) and monocromator150-mm Czerny Turner (Omni-l 150, Lot-Oriel)
  • Sun Simulator Class A, 91195A, Newport
  • Keithley 2440 source measure unit + PC
  • UV-Lamp (Newport)
  • Probe station with micromanipulators
  • Glove box in Nitrogen atmosphere for material preparations and electrical measurements (in/out electrical connection)

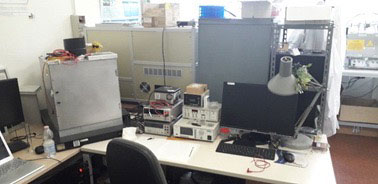

Electrical-and-electrochemical-characterization-1
Electrical-and-electrochemical-characterization-2
Electrical-and-electrochemical-characterization-3

The Probe station has a chuck that can support up to 6" wafers with very fine x, y and angular movement. The top microscope allows the correct alignment of the probes with the devices under test. Up to four probes are available, two of them with triaxial cable for extremely precise electrical measurement; the other two have coaxial connections. The Probe station has a soft contact tool that allows a semi-automatic movement to contact the probe tips to the devices without putting too much pressure.

Probe station with puck controlled air-bearing stage:

  • 180 x 230 mm (7.1 x 9.1 in) XY total stage movement
  • 25 x 25 mm micrometer fine stage movement
  • +/- 5 degree fine chuck Theta rotation
  • Dedicated 25 mm fine platen height adjustment
  • Stable microscope bridge mount
  • Vibration absorbing base
